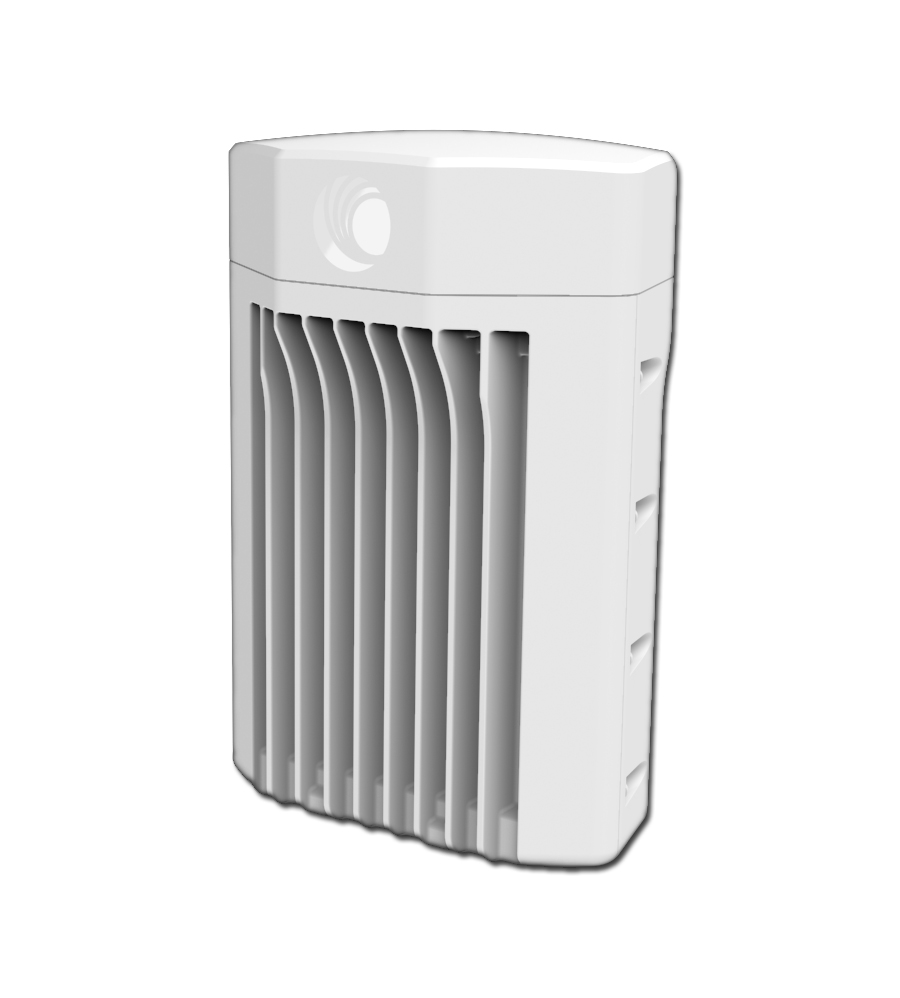

60 GHz cnWave V5000

V5000 is featured with two sectors covering up to 280 degrees with beamforming. A single V5000 can connect up to 30 devices, which includes up to four distribution nodes. V5000 can be used for PTP, PMP and mesh configurations.

Designed For High-speed and High-density Deployments

Cambium Networks’ 60 GHz cnWave solution provides easy, fast and cost-effective wireless gigabit connectivity for edge access and/or high-capacity backhaul for edge access solutions at a significantly lower TCO than fiber infrastructure. Service providers and enterprises now have access to gigabit for business and residential connectivity, backhaul for Wi-Fi access or LTE/5G small cell. Certified for Facebook Terragraph, cnWave mesh solutions are highly efficient at handling high-density deployments in cities and suburban areas.

V5000 is featured with two sectors covering up to 280 degrees with beamforming. A single V5000 can connect up to four other distribution nodes or up to 30 client nodes. V5000 can be used for PTP, PMP and mesh configurations.

Cloud and On-Premise Management

60 GHz cnWave operates with Cambium Networks’ cnMaestro management system. cnMaestro™ is a cloud-based or on-premises software platform for secure, end-to-end network control. cnMaestro wireless network manager simplifies device management by offering full network visibility and zero-touch provisioning. View and perform a full suite of wireless network management functions in real time. Optimize system availability, maximize throughput and meet emerging needs of business and residential customers.

Frequency Range 57 to 66 GHz in a single SKU
Channel Width 2.16 GHz, 4.32 GHz*
Carrier Bonding* Up to 2 adjacent channels
Mode of Operation PMP or Mesh, PTP
Channel Access TDMA/TDD
Ethernet Interface 1 x 100/1000/10G BaseT with PoE In, 1 x 100/1000 BaseT with 802.3at PoE Out, 1 x SFP+
Modulation & Coding Schemes MCS-0 (BPSK) to MCS-12 (16-QAM)
Latency < 1 ms
Maximum EIRP 38 dBm
Encryption 128-bit AES
