LHG 5

The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase.

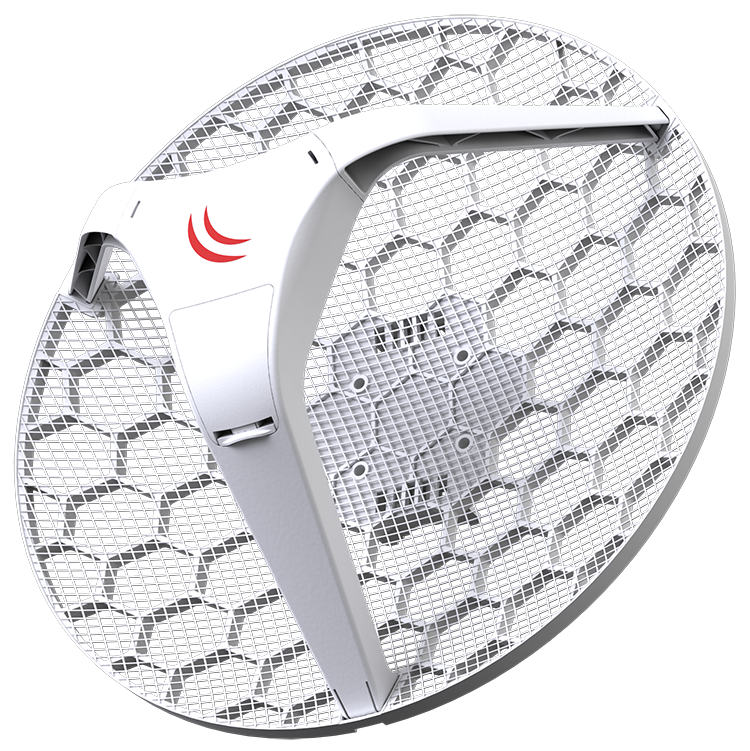

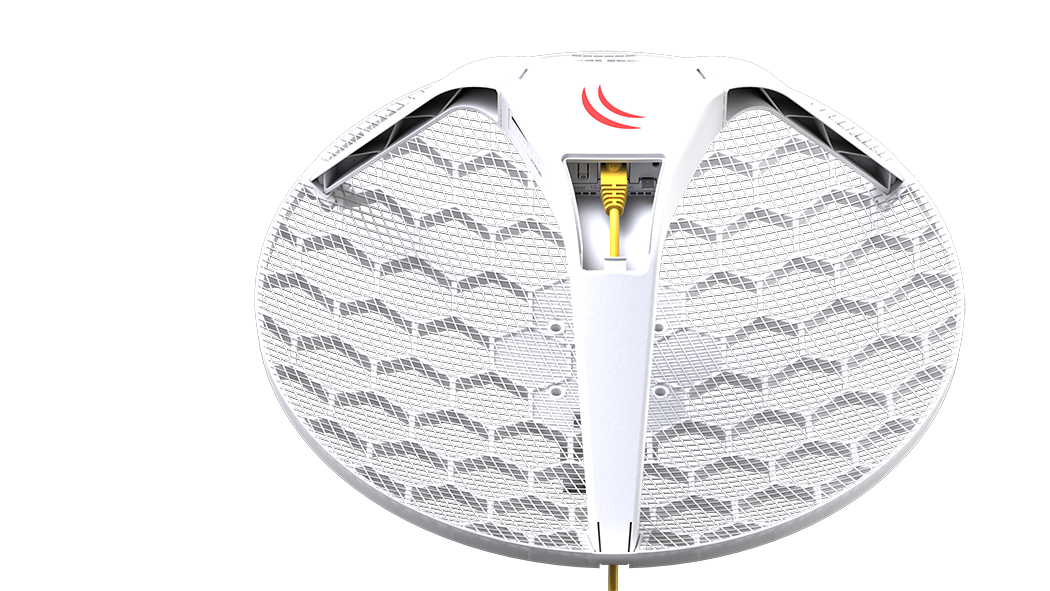

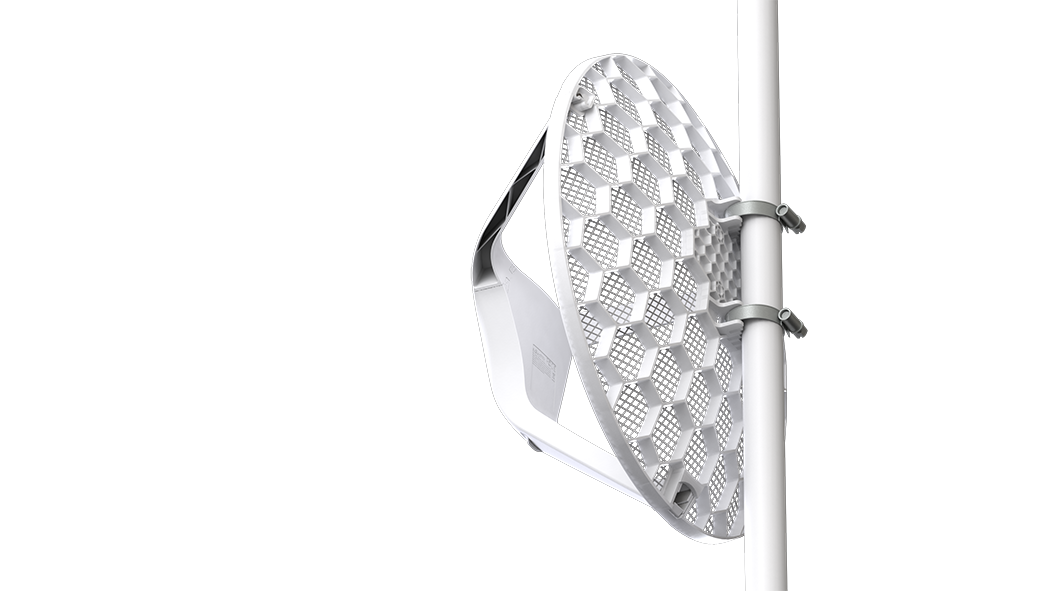

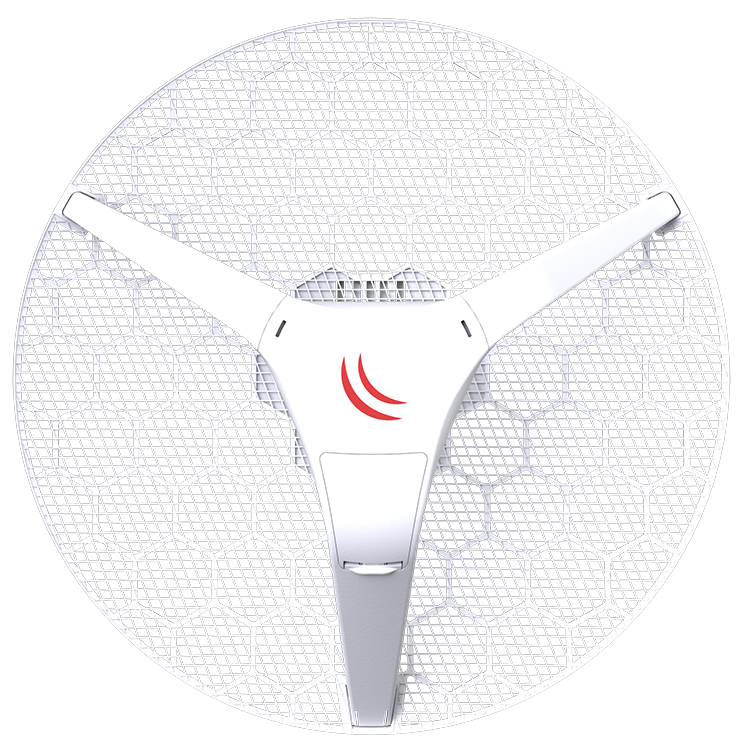

The LHG 5 is a compact and light 5GHz 802.11 a/n wireless device with an integrated dual polarization 24.5 dBi grid antenna at a revolutionary price. It is perfect for point to point links or for use as a CPE at longer distances and supports Nv2 TDMA protocol.

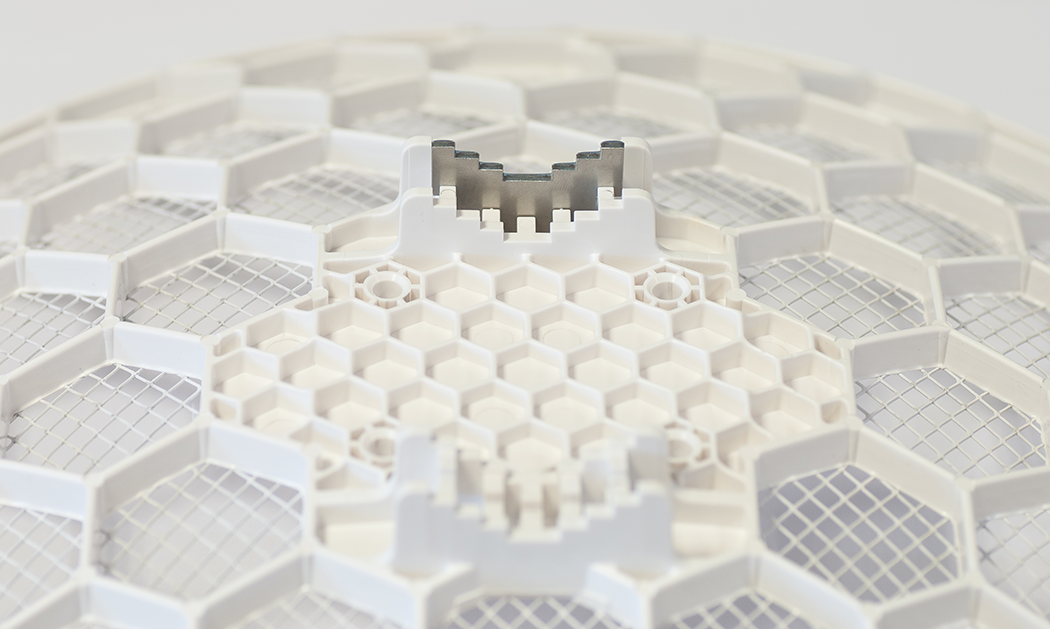

The grid design ensures protection against wind, and the fact that the antenna element is built into the wireless unit means no loss on cables.

We have two versions available.

  • LHG 5-US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.
  • LHG 5 (International) supports 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).

Details
Product code RBLHG-5nD
Architecture MIPSBE
CPU AR9344
CPU core count 1
CPU nominal frequency 600 MHz
Dimensions Ø 391 x 222 mm; package 450 x 450 x 145 mm
RouterOS license 3
Operating System RouterOS
Size of RAM 64 MB
Storage size 16 MB
Storage type FLASH
MTBF Approximately 100'000 hours at 25C
Tested ambient temperature -40°C to 70°C
Suggested price $59.00
Powering
Details
Number of DC inputs 1 (PoE-IN)
Max power consumption 6 W
Cooling type Passive
PoE in Passive PoE
PoE in input Voltage 11-30 V
Wireless specifications
Details
Wireless 5 GHz Max data rate 300 Mbit/s
Wireless 5 GHz number of chains 2
Wireless 5 GHz standards 802.11a/n
Antenna gain dBi for 5 GHz 24.5
Wireless 5 GHz chip model AR9344
Wireless 5 GHz generation Wi-Fi 4
Ethernet
Details
10/100 Ethernet ports 1
Certification & Approvals
Details
Certification CE, FCC, IC, EAC, ROHS
IP IP54
Wireless specifications
5 GHz Transmit (dBm) Receive Sensitivity
6MBit/s 25 -96
54MBit/s 20 -80
MCS0 25 -96
MCS7 19 -75
