The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase.

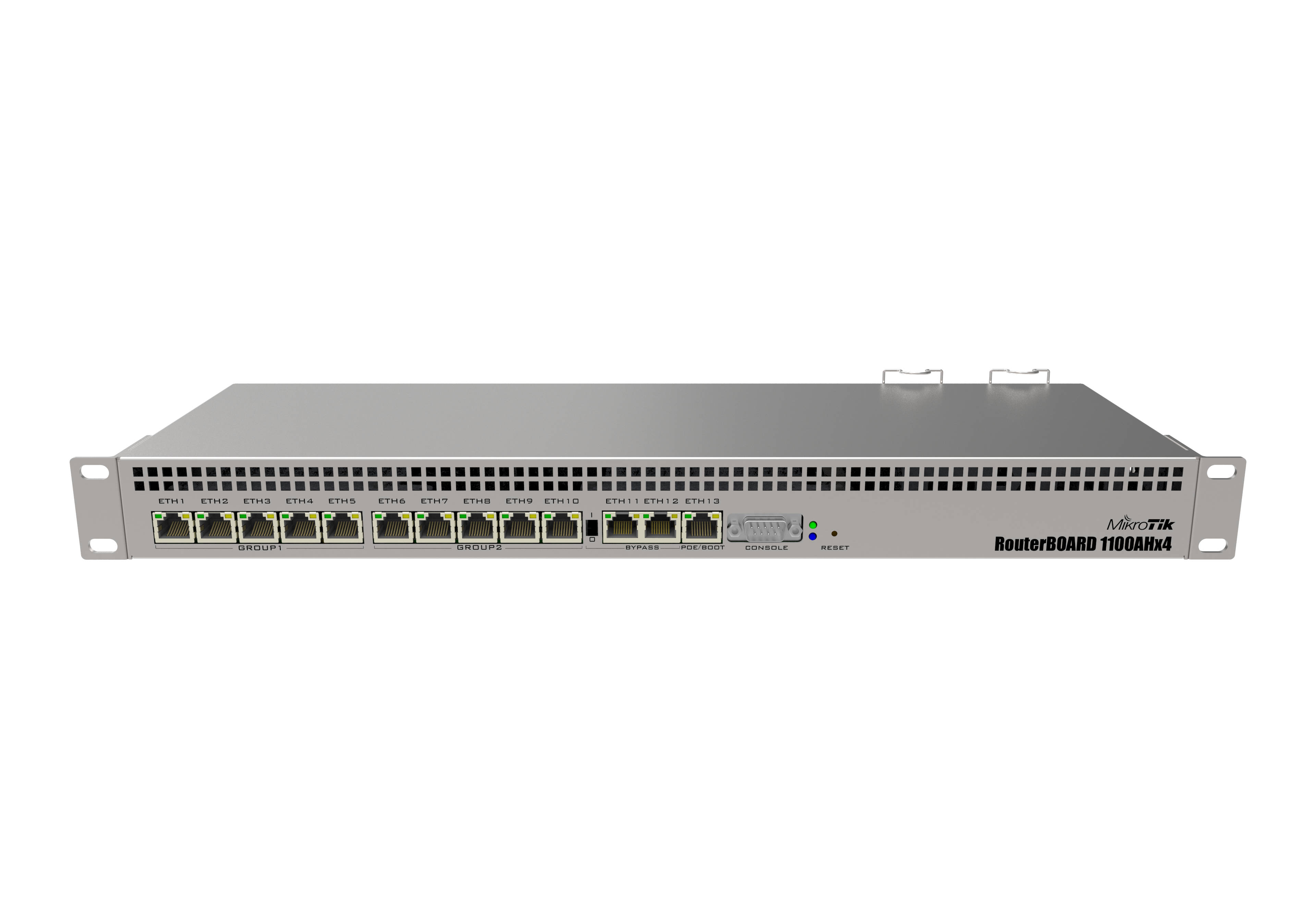

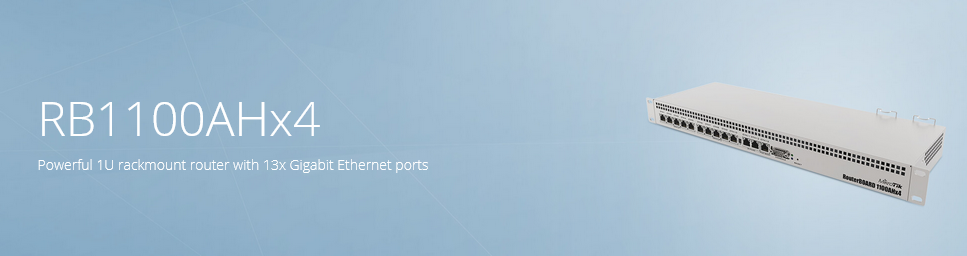

Introducing RB1100AHx4, 13x Gigabit Ethernet ports Router, powered by Annapurna Alpine AL21400 CPU with four Cortex A15 cores, clocked at 1.4GHz each, for a maximum throughput of up to 7.5Gbit. The device supports IPsec hardware acceleration (up to 2.2Gbps with AES128).
Unit comes with 1U rackmount case, RS232 serial port and dual redundant power supplies (with -48v DC telecom power and 802.3at/af support).
| Details | |
|---|---|
| Product code | RB1100x4 |
| Architecture | ARM 32bit |
| CPU | AL21400 |
| CPU core count | 4 |
| CPU nominal frequency | 1.4 GHz |
| Dimensions | 443 x 148 x 44 mm |
| RouterOS license | 6 |
| Operating System | RouterOS |
| Size of RAM | 1 GB |
| Storage size | 128 MB |
| Storage type | NAND |
| MTBF | Approximately 200'000 hours at 25C |
| Tested ambient temperature | -40°C to 70°C |
| IPsec hardware acceleration | Yes |
| Suggested price | |
| Details | |
|---|---|
| Number of AC inputs | 2 |
| AC input range | 100-240 |
| Number of DC inputs | 2 (2-pin terminal, PoE-IN) |
| 2-pin terminal input Voltage | -48, 12-57 V |
| Max power consumption | 20 W |
| Cooling type | Passive |
| PoE in | 802.3af/at |
| PoE in input Voltage | 20-57 V |
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 13 |
| Details | |
|---|---|
| Memory card type | microSD |
| Memory Cards | 1 |
| Serial console port | RS232 |
| Details | |
|---|---|
| Current Monitor | Yes |
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
| Mode button | Yes |
| Details | |
|---|---|
| Certification | CE, EAC, ROHS |
| IP | IP20 |
