| Item | Details |
|---|---|
| Description | S5735-L8T4S-A1 (8*10/100/1000BASE-T ports, 4*GE SFP ports, AC power) |
| Part Number | 98011284 |
| Model | S5735-L8T4S-A1 |
| First supported version | V200R020C10 |

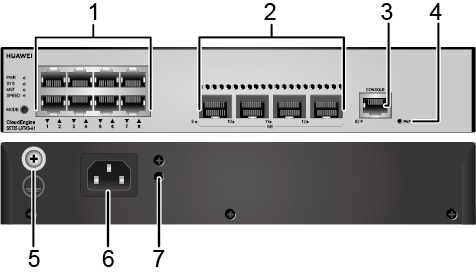

Components
|
1 |
Eight 10/100/1000BASE-T ports |
2 |
Four 1000BASE-X ports |
|
3 |
One console port |
4 |
One PNP button NOTICE:
To restore the factory settings and reset the switch, hold down the button for at least 6 seconds. To reset the switch, press the button. Resetting the switch will cause service interruption. Exercise caution when you press the PNP button. |
|
5 |
Ground screw NOTE:
It is used with a ground cable.
|
6 |
AC socket NOTE:
It is used with an AC power cable. |
|
7 |
Jack for AC power cable locking strap NOTE:
The AC power cable locking strap is not delivered with the switch.
|
– |
– |
Ports
| Port | Connector Type | Description | Available Components |
|---|---|---|---|
| 10/100/1000BASE-T port | RJ45 | A 10/100/1000BASE-T Ethernet electrical port sends and receives service data at 10/100/1000 Mbit/s. |
Ethernet cable |
| 1000BASE-X port | SFP | A 1000BASE-X port can send and receive data at 100 or 1000 Mbit/s. |
|
| Console port | RJ45 | The console port is connected to a console for on-site configuration. |
Console cable |
Indicators and Buttons
The S5735-L8T4S-A1 has similar indicators to those on the S5735-L24P4X-A1 except that the S5735-L8T4S-A1 does not have USB and PoE mode indicators. For details, see the S5735-L24P4X-A1.
Power Supply System
The switch has a built-in AC power module and does not support pluggable power modules.
Heat Dissipation System
The switch has a built-in fan for forced air cooling. Air flows in from the left side and front panel, and exhausts from the right side.
When working properly at a normal temperature, the device meets the desktop-class noise requirements. However, the fan speed may be high and the noise may be loud during device startup.
