Groove 52HPn

The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..

Our smallest outdoor series model – a fully featured wireless RouterBOARD powered by RouterOS. Weatherproof, durable and ready to use. It has one 10/100 Ethernet port with PoE support and a built in wireless radio. It has software selectable 2 or 5GHz wireless mode, and high output power!

With the Nv2 TDMA technology, up to 125Mbit aggregate throughput is possible! It has a built-in N-male connector, and pole attachment points, so you can attach it to an antenna directly, or use a standard antenna cable. LED signal indicators make it easy to install and align.

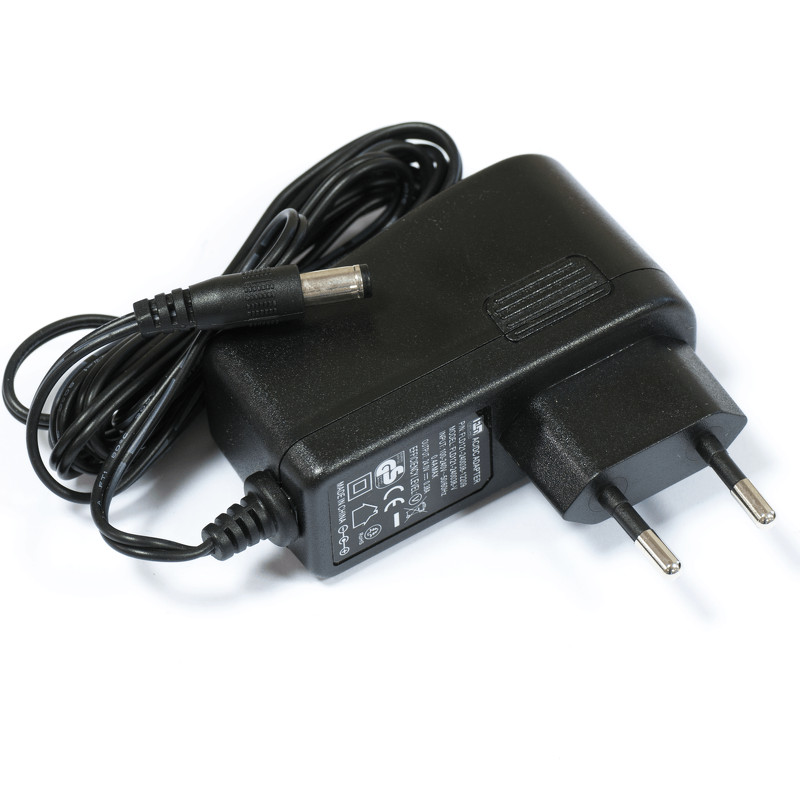

Box contains: Groove unit, mounting loops, PoE injector and power adapter

We have two versions available.

-Groove 52-US (USA) is factory locked for 2412-2462MHz, 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.

– Groove 52 (International) supports 2412-2484MHz and 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).

Details
Product code RBGroove52HPn
Architecture MIPSBE
CPU AR9342
CPU core count 1
CPU nominal frequency 600 MHz
Dimensions 180x49x44mm, 193g
RouterOS license 3
Operating System RouterOS
Size of RAM 64 MB
Storage size 16 MB
Storage type FLASH
MTBF Approximately 100'000 hours at 25C
Tested ambient temperature -40°C to 70°C
Suggested price $59.00
Powering
Details
Number of DC inputs 1 (PoE-IN)
Max power consumption 6 W
Cooling type Passive
PoE in Passive PoE
PoE in input Voltage 9-30 V
Wireless specifications
Details
Wireless 2.4 GHz/5 GHz Max data rate 150 Mbit/s
Wireless 2.4 GHz/5 GHz number of chains 1
Wireless 2.4 GHz/5 GHz standards 802.11a/b/g/n
Wireless 2.4 GHz/5 GHz chip model AR9342
Wireless 2.4 GHz/5 GHz generation Wi-Fi 4
Ethernet
Details
10/100 Ethernet ports 1
Other
Details
PCB temperature monitor Yes
Voltage Monitor Yes
Beeper Yes
Certification & Approvals
Details
Certification CE, FCC, IC, EAC, ROHS
Wireless specifications
2.4 GHz Transmit (dBm) Receive Sensitivity
1MBit/s 27 -97
11MBit/s 27 -91
6MBit/s 27 -93
54MBit/s 24 -75
MCS0 27 -93
MCS7 23 -70
5 GHz Transmit (dBm) Receive Sensitivity
6MBit/s 27 -93
54MBit/s 23 -75
MCS0 26 -93
MCS7 22 -70
